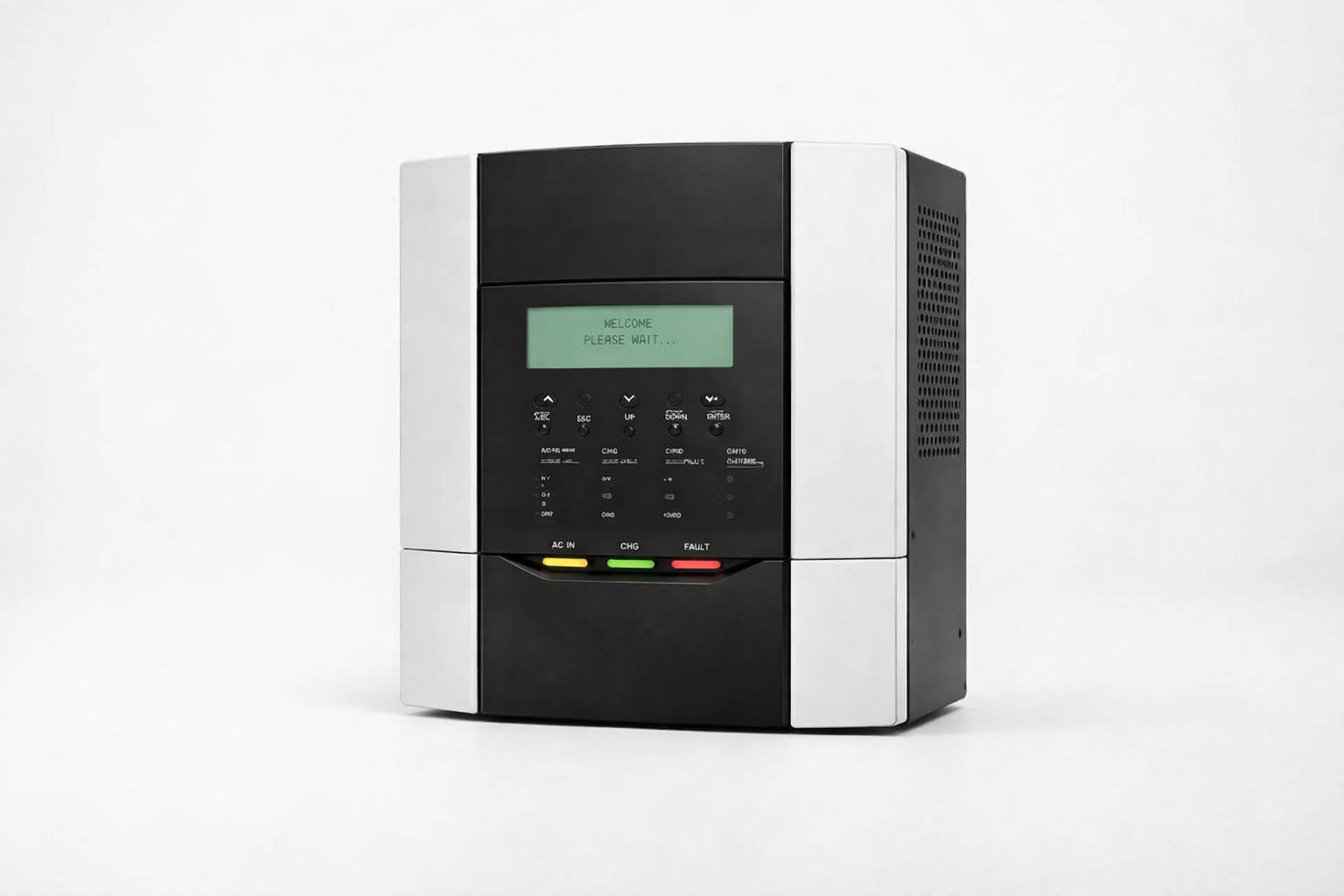

Honeywell Gent Nano-24 Analogue Addressable Fire Alarm Control Panel

Bring high-end commercial protection to your smaller-scale projects. The Honeywell Gent Nano-24 is an intelligent, single-loop analogue addressable fire alarm panel engineered specifically for sites that demand premium fire security in a compact, standalone form factor. Ideal for schools, modern office complexes, retail spaces, and smaller warehouses, the Nano-24 blends an attractive, stylish appearance with powerful, uncompromised safety features.

By utilizing addressable technology, the Nano-24 allows installers and emergency responders to immediately pinpoint the exact location of a triggered device. It operates flawlessly with the latest range of Honeywell Gent Vigilon loop devices, giving you access to cutting-edge detection without needing a massive, multi-panel network infrastructure.

Key Features & Capabilities:

• High Device Capacity: Supports up to 127 addressable devices on a single loop, including loop-powered detectors, call points, and interfaces.

• Vigilon Compatibility: Built to seamlessly drive advanced detection technology, including the highly reliable Gent S-Quad and S-Cubed ranges (sensors, sounders, strobes, and voice alarms).

• Cost-Efficient 2-Core Wiring: All field devices connect onto the same two-core loop, completely eliminating the need for separate, expensive sounder wiring circuits.

• Intuitive Interface: Features a clear, backlit digital LCD screen displaying real-time system messages, flanked by user-friendly navigation keys for straightforward daily operation and maintenance.

• Instant Diagnostic LEDs: Dedicated front-panel LED indicators for AC IN (power status), CHG (battery charger status), and FAULT system warnings provide at-a-glance health metrics.

• Flexible Configuration: Simple cause-and-effect fire plans can be configured quickly, either directly via the front panel interface or remotely using a USB connection tool.

Technical Specifications:

• Brand: Honeywell Gent

• Model / Order Code: NANO-24

• System Type: Analogue Addressable (Single Loop / Standalone)

• Device Loop Capacity: Up to 127 devices

• Display: Full Digital LCD Backlit Screen

• Zonal Capacity: 16 individual detection zones

• Standards Compliance: Certified to EN54 Parts 2 & 4

• Application: Ideal for small-to-medium offices, retail outlets, schools, warehouses, and server rooms.
